We presently make custom replacement anchor rollers for most boats under 60 feet. We produce these with black acetal (see data sheet) in our own US production facilities so can produce other sizes and shapes. We do CAD designs before doing any production which we will provide to you for future use and for verification. See images below. Let us know what you need and a PayPal email address so we can send you a PayPal invoice or just pay via Facebook by selecting the $ symbol at the bottom of an instant message to me at: https://www.facebook.com/don.green.969

1/ Choose a style from list below.
2/ Measure the end diameter
3/ Measure the length
4/ Use calipers and measure the diameter of the bolt or spacer that runs through the center hole. Do not measure the hole in the old roller as it will be worn and probably incorrect.
5/ Send the information and your details to us via the form here: http://dreamgreen.org/contact
6/ We will send you a quote within 24 hours

Style 1:

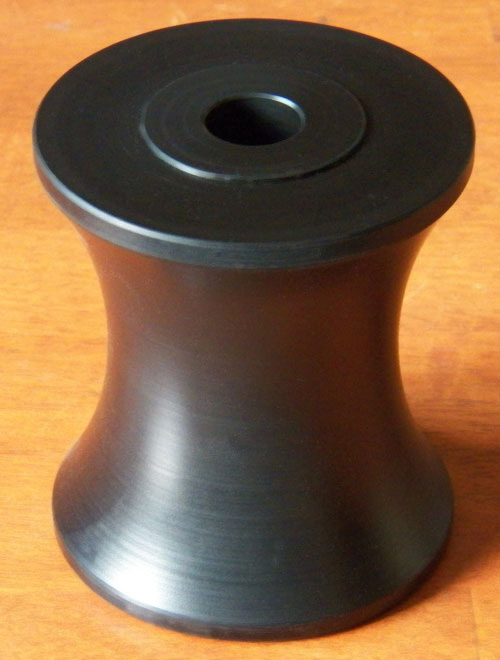

Anchor roller style 1
Anchor roller style 1

Style 2:

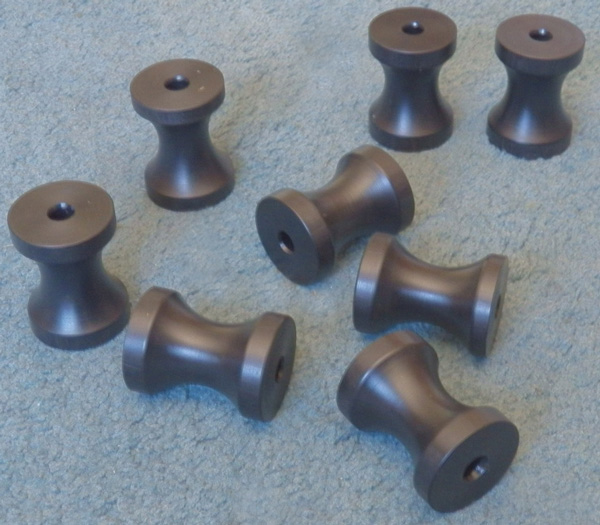

Anchor roller style 2
Anchor roller style 2

Style 3:

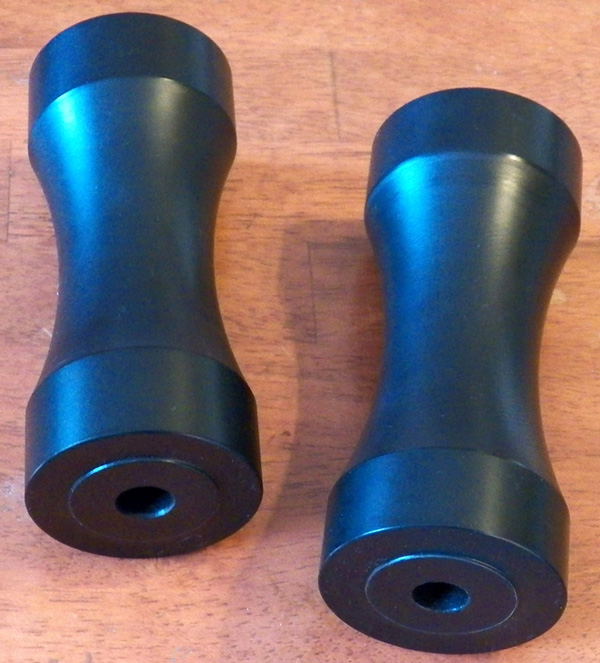

Anchor roller style 3
Anchor roller style 3

Style 4:

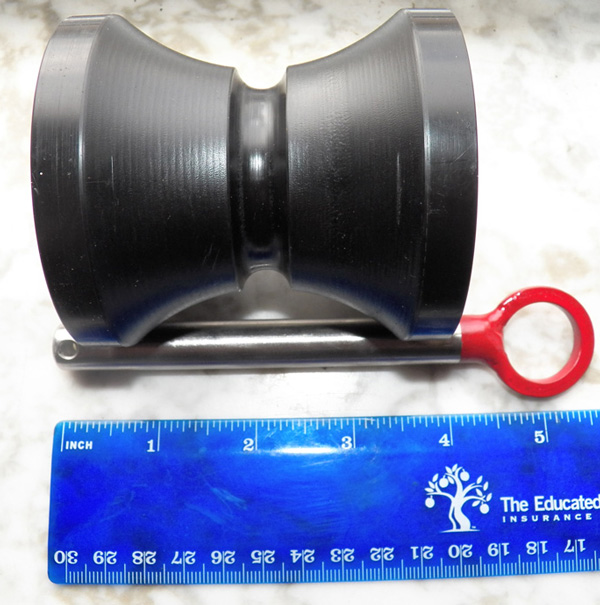

Anchor roller style 4
Anchor roller style 4

Style 5:

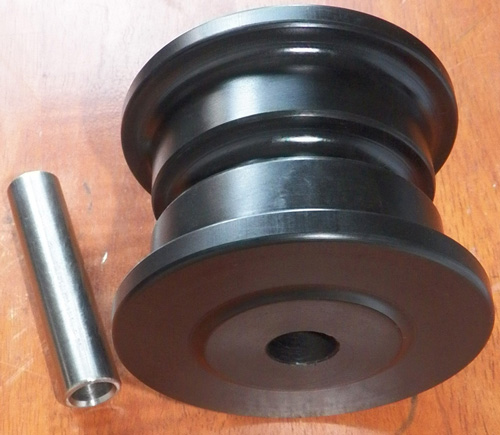

 4 X 3.25 Style5

Typical prices, note that bushings are not required for these. Can also make smaller sizes.

3" diameter $55
4" diameter $75
5" diameter $100
6" diameter $140
